| MODEL | iXCEED 3K24/48-S120 | iXCEED 3.6K24/48-S120 | iXCEED 5 K/5.5K-48-S120 |
|---|---|---|---|
| PV Array | |||
| Max.PV Array Power | 3600W | 4200W | 6000W |
| Max.PV Array Open-Circuit Voltage | 300VDC | ||
| Start-up Voltage | 60VDC | ||
| MPPT Operating Voltage Range | 70-280VDC | ||
| Nominal Input Voltage | 250VDC | ||
| Max. Input Current MPPT | 30A | ||
| MPPT max Efficiency | 99% | ||
| Battery | |||
| Battery Type | Li-ion /lead-acid | ||
| Nominal Battery Voltage | 24/48V | 48V | |
| Battery Voltage Range | 21-29/42-58V | 42-58V | |
| Max. AC Charging Current | 70/35A | 80/40A | 50A |
| Max. PV Charging Current | 80/60A | 80/60A | 100A |
| Max. Continuous Discharging Current | 100/80A | 100/80A | 120A |
| AC Input | |||
| Nominal Voltage | 120Vac | ||
| Voltage Range | 90-140Vac | ||
| Frequency | 50/60Hz (Auto following) | ||
| Low Loss Frequency | 45Hz | ||
| Max. Input Current | 40A | 50A | |
| AC Output | |||
| Nominal Voltage | 120Vac ±5% | ||
| Output Voltage Waveform | Pure Sine Wave | ||
| Rated Output Power | 3000VA/3000W | 3600VA/3600W | 5500VA/5500W |
| Peak Output Power | 4500VA | 5400VA | 7500VA |
| Nominal Output Fregency | 50/60Hz | ||
| Transfer Time | 10ms | ||
| Efficiency(peak) PV to INV | 96.50% | ||
| Efficiency(peak) BAT to INV | 91.00% | ||
| Protection | |||
| Over Temperature Protection | Yes | ||
| Overload Protection | 3s@ ≥150% load;10s@110%~150% load | ||
| General Data | |||
| Operating Temperature Range | -10 -- +50℃ | ||
| Safety Certification | CE | ||
| Relative Humidity | 0~95%Relative Humidity (Non-condensing) | ||
| Max. Operating Altitude | < 4000m | ||
| Cooling Method | Intelligent Fan cooling | ||

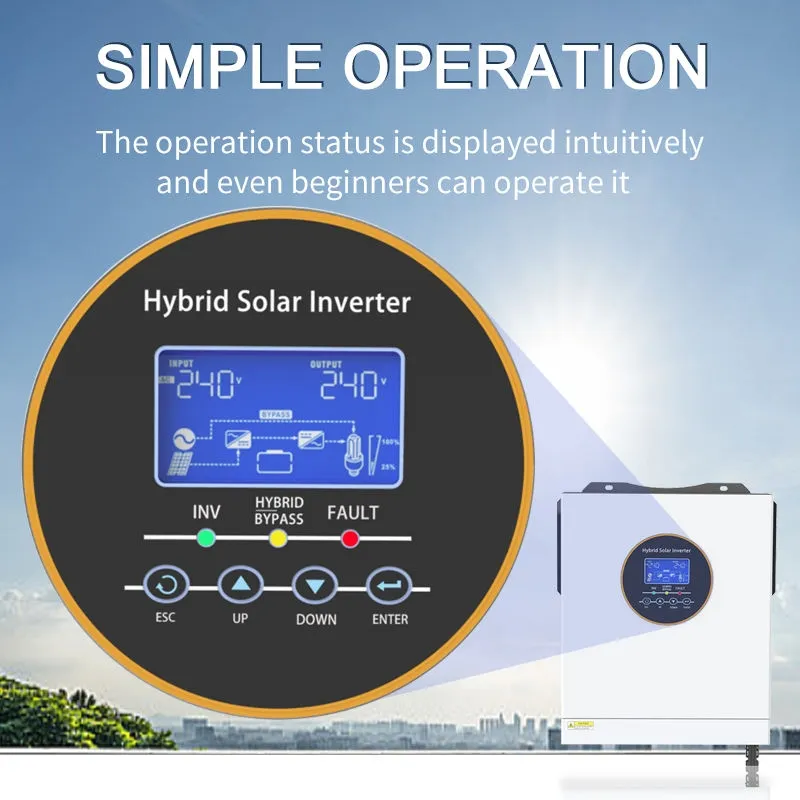

| Display | LED + LCD | ||
| Degree of Protection | IP21 | ||
| Gross Weight(kg)/Net Weight(kg) | 7.2/6.3 | 7.2/6.3 | |
| Package Dimensions (L × W × H)mm | 428*367*176 | 363*105*300 | |
| Mounting Method | Wall Mounted | ||
